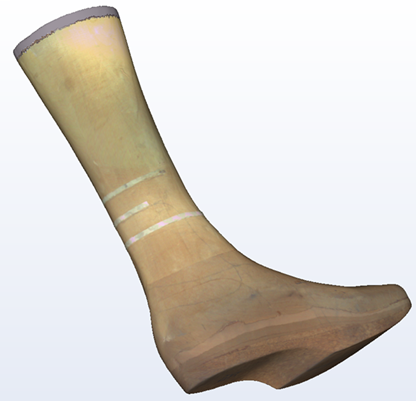

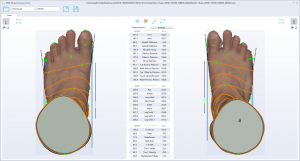

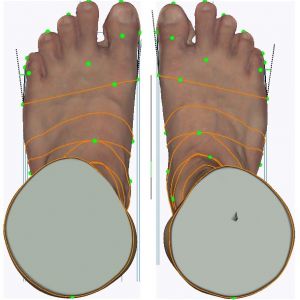

Full-foot 3D with color in non/semi/full-weight

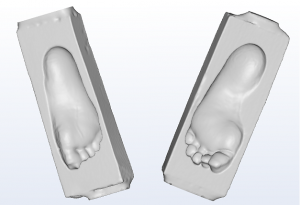

Foam Impression and Shoe Last

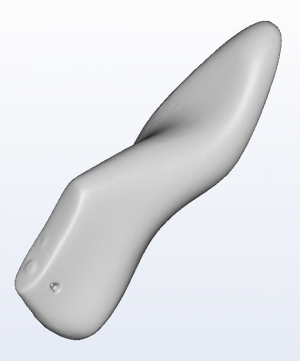

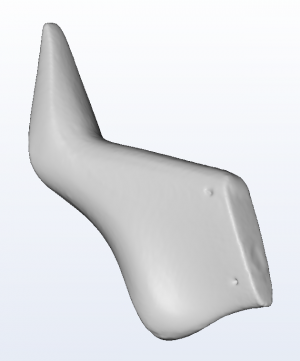

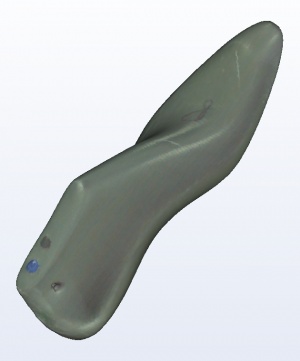

Shoe lasts (shiny surface may require powder coating)

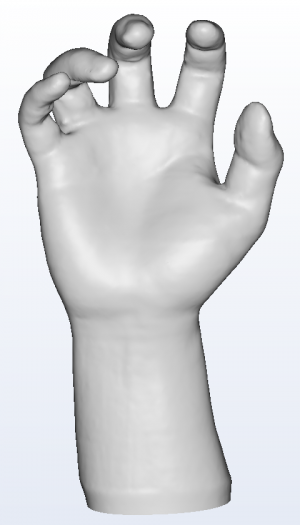

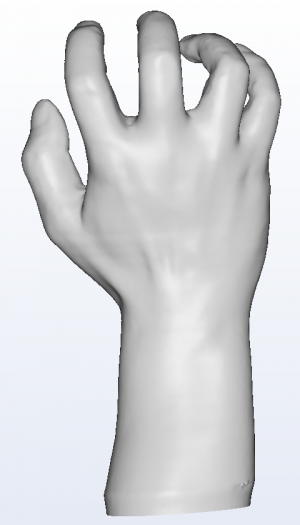

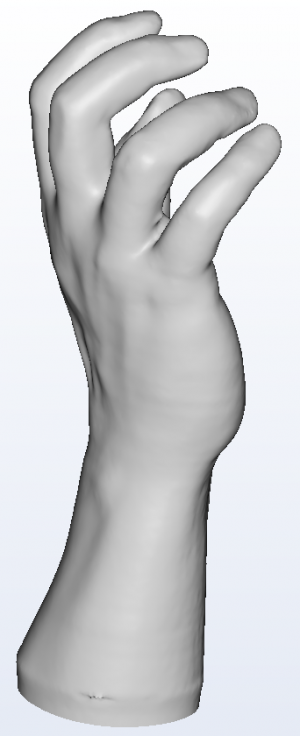

Hand scan

Scan Speed 3s~10s depending on resolution

Intel Core i9-12900HK, 16G RAM, 4+ independent USB ports

Integrated GPU OK. Recommend MINISFORUM NAB9 Plus

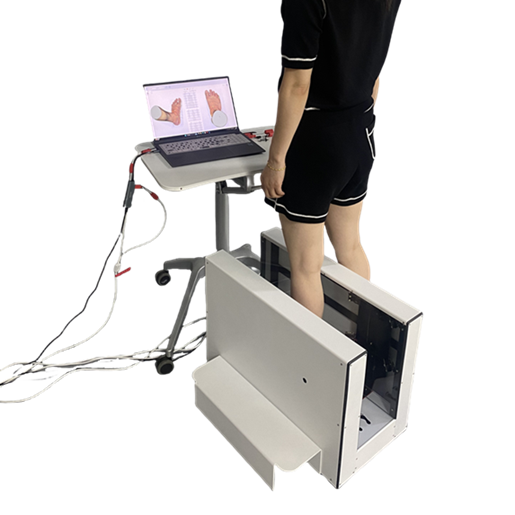

Software UI or Foot switch to activate scan

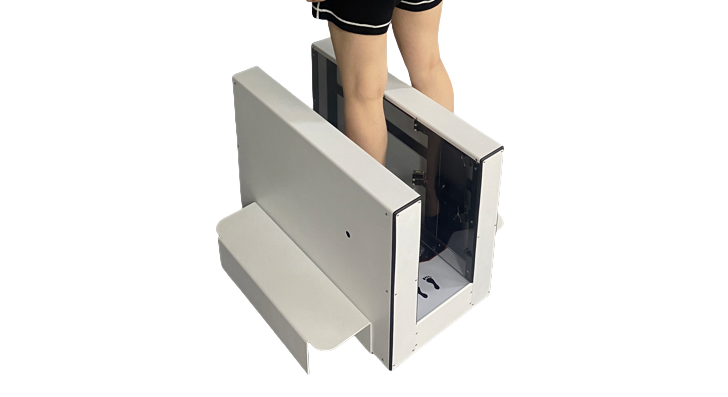

Normal lighting, open top coverless scan

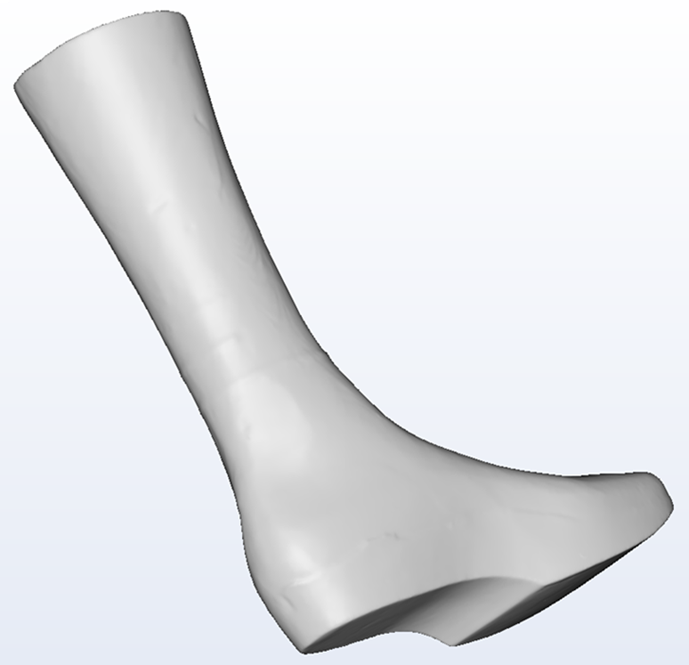

Clean 3D mesh, +/- 0.5mm accuracy

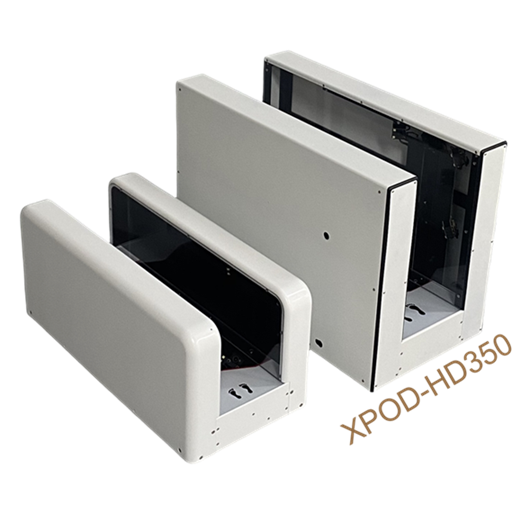

Scan Volume: 380L X 150W X 350H mm

Max foot size EU56/US20.5 with 10mm toe/heel gap

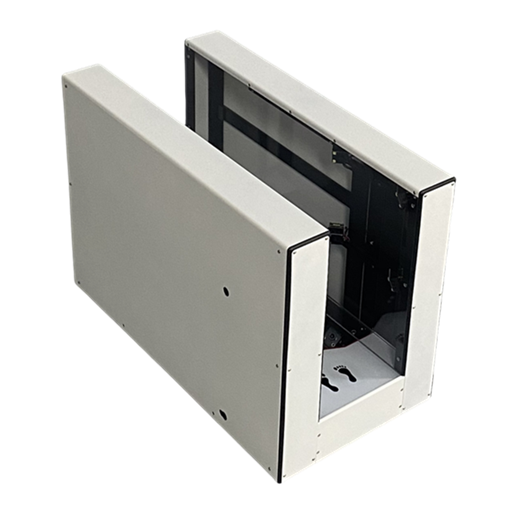

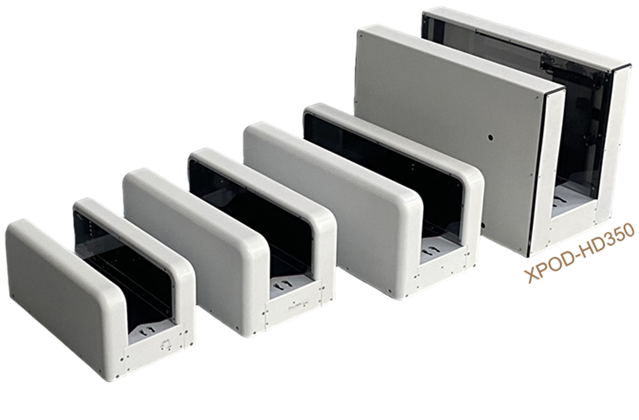

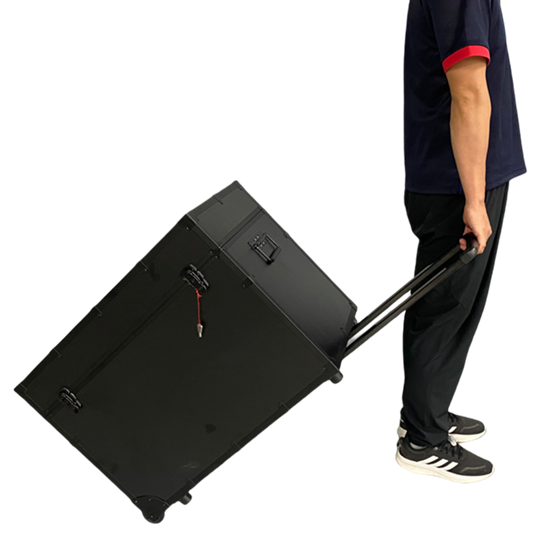

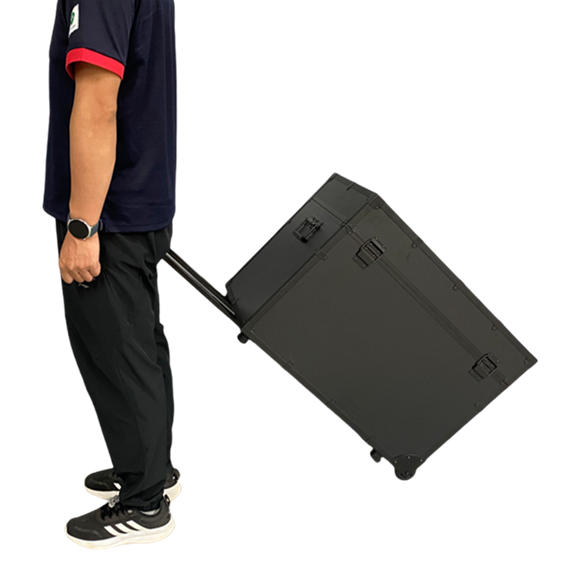

Size: 660L X 340W X 460H mm

Weight: 20.1Kg (44.3Lb)

Load Capacity: 180Kg (397Lb)

Power adapter AC 100-240V; DC 12V/5A

Customizable panels design and color

CE/FDA/PSE certification/registration

One-year limited warranty

Win10/11, doesn't support Win7/8

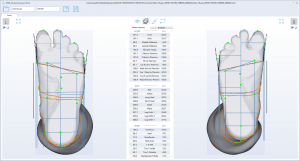

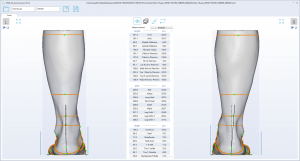

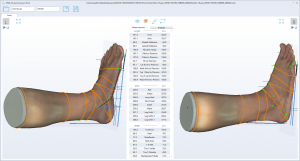

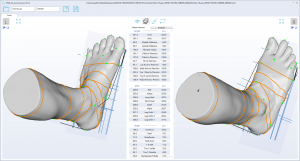

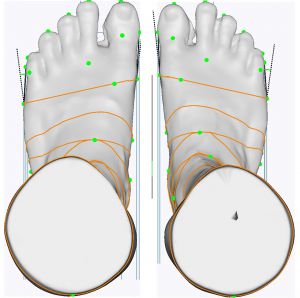

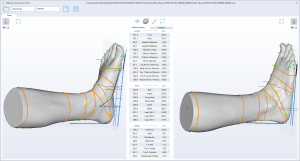

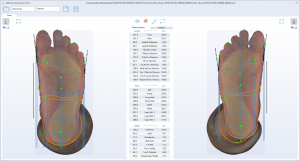

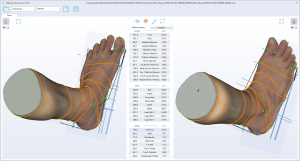

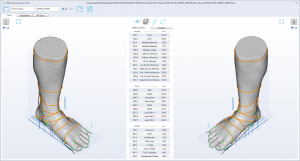

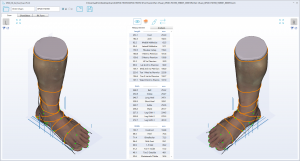

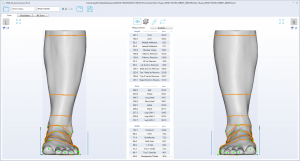

Auto 30 Landmark and 43 Measurements

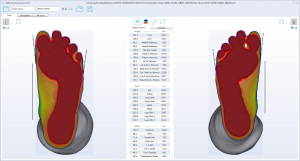

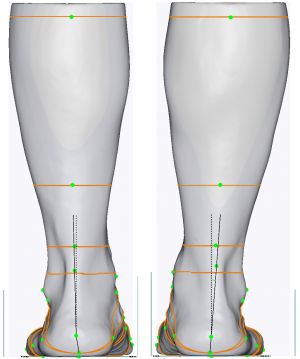

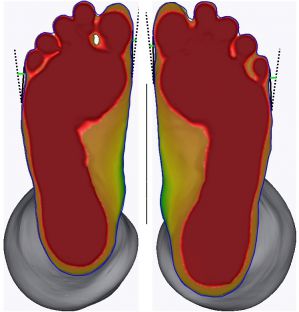

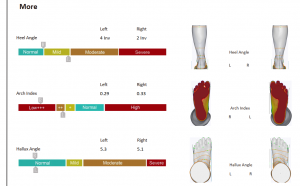

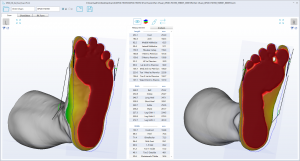

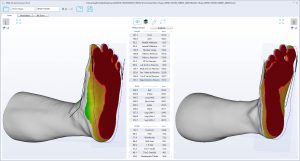

Auto analysis for arch type, bunion, and heel angle

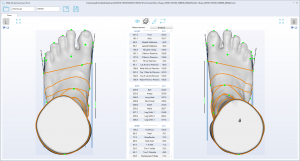

Mark landmarks on foot then drag points to match

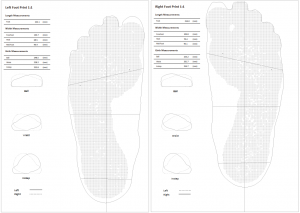

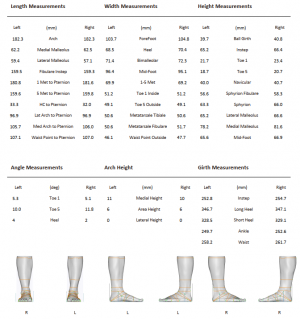

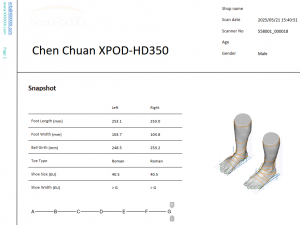

PDF Foot report with manual annotations

User-editable report templates, sell your own brand

User-define UI and icon color and your local language

Shoe size/width output for US/UK/EU/CN/JP standards

3D format STL/WRL/OBJ/PLY, 2D format JPG/PNG, PDF report, CSV data file

FTP send order to shoe/insole fabrication

User-define RX form for orthopedic shoe/insole

Developers: CMD/EXE call scanner to receive data-integration into your own CAD software and database

Optional encrypt scanners to lock files

Also support UPOD-S and UPOD-HD scanners
